Serial Ports a Tutorial

Electronic data communications between elements will generally fall into two broad categories: single-ended and differential. RS232 (single-ended) was introduced in 1962, and despite rumors for its early demise, has remained widely used through the industry.

Independent channels are established for two-way (full-duplex) communications. The RS232 signals are represented by voltage levels with respect to a system common (power / logic ground). The "idle" state (MARK) has the signal level negative with respect to common, and the "active" state (SPACE) has the signal level positive with respect to common. RS232 has numerous handshaking lines (primarily used with modems), and also specifies a communications protocol.

The RS-232 interface presupposes a common ground between the DTE and DCE. This is a reasonable assumption when a short cable connects the DTE to the DCE, but with longer lines and connections between devices that may be on different electrical busses with different grounds, this may not be true.

RS232 data is bi-polar.... +3 TO +12 volts indicates an "ON or 0-state (SPACE) condition" while A -3 to -12 volts indicates an "OFF" 1-state (MARK) condition.... Modern computer equipment ignores the negative level and accepts a zero voltage level as the "OFF" state. In fact, the "ON" state may be achieved with lesser positive potential. This means circuits powered by 5 VDC are capable of driving RS232 circuits directly, however, the overall range that the RS232 signal may be transmitted/received may be dramatically reduced.

The output signal level usually swings between +12V and -12V. The "dead area" between +3v and -3v is designed to absorb line noise. In the various RS-232-like definitions this dead area may vary. For instance, the definition for V.10 has a dead area from +0.3v to -0.3v. Many receivers designed for RS-232 are sensitive to differentials of 1v or less.

This can cause  problems when using pin powered widgets - line drivers, converters, modems etc. These type of units need enough voltage & current to power them self's up. Typical URART (the RS-232 I/O chip) allows up to 50ma per output pin - so if the device needs 70ma to run we would need to use at least 2 pins for power. Some devices are very efficient and only require one pin (some times the Transmit or DTR pin) to be high - in the "SPACE" state while idle.

An RS-232 port can supply only limited power to another device. The number of output lines, the type of interface driver IC, and the state of the output lines are important considerations.

The types of driver ICs used in serial ports can be divided into three general categories:

  • Drivers which require plus (+) and minus (-) voltage power supplies such as the 1488 series of interface integrated circuits. (Most desktop and tower PCs use this type of driver.)
  • Low power drivers which require one +5 volt power supply. This type of driver has an internal charge pump for voltage conversion. (Many industrial microprocessor controls use this type of driver.)
  • Low voltage (3.3 v) and low power drivers which meet the EIA-562 Standard. (Used on notebooks and laptops.)

Data is transmitted and received on pins 2 and 3 respectively. Data  Set Ready (DSR) is an indication from the Data Set (i.e., the modem or DSU/CSU) that it is on. Similarly, DTR indicates to the Data Set that the DTE is on. Data Carrier Detect (DCD) indicates that a good carrier is being received from the remote modem.

Pins 4 RTS (Request To Send - from the transmitting computer) and 5 CTS (Clear To Send - from the Data set) are used to control. In most Asynchronous situations, RTS and CTS are constantly on throughout the communication session. However where the DTE is connected to a multipoint line, RTS is used to turn carrier on the modem on and off. On a multipoint line, it's imperative that only one station is transmitting at a time (because they share the return phone pair). When a station wants to transmit, it raises RTS. The modem turns on carrier, typically waits a few milliseconds for carrier to stabilize, and then raises CTS. The DTE transmits when it sees CTS up. When the station has finished its transmission, it drops RTS and the modem drops CTS and carrier together.

Clock signals (pins 15, 17, & 24) are only used for synchronous communications. The modem or DSU extracts the clock from the data stream and provides a steady clock signal to the DTE. Note that the transmit and receive clock signals do not have to be the same, or even at the same baud rate.

Note: Transmit and receive leads (2 or 3) can be reversed depending on the use of the equipment - DCE Data Communications Equipment or a DTE Data Terminal Equipment.


Glossary of Abbreviations etc.

CTS            Clear To Send [DCE --> DTE]
DCD           Data Carrier Detected (Tone from a modem) [DCE --> DTE]
DCE            Data Communications Equipment eg. modem
DSR            Data Set Ready [DCE --> DTE]
DSRS         Data Signal Rate Selector [DCE --> DTE] (Not commonly
                    used)
DTE            Data Terminal Equipment eg. computer, printer
DTR            Data Terminal Ready [DTE --> DCE]
FG              Frame Ground (screen or chassis)
NC              No Connection
RCk            Receiver (external) Clock input
RI                Ring Indicator (ringing tone detected)
RTS            Ready To Send [DTE --> DCE]
RxD            Received Data [DCE --> DTE]
SG              Signal Ground
SCTS         Secondary Clear To Send [DCE --> DTE]
SDCD        Secondary Data Carrier Detected (Tone from a modem)
                    [DCE  --> DTE]
SRTS         Secondary Ready To Send [DTE --> DCE]
SRxD         Secondary Received Data [DCE --> DTE]
STxD         Secondary Transmitted Data [DTE --> DTE]
TxD            Transmitted Data [DTE --> DTE]


Is Your Interface a DTE or a DCE?

One of the stickiest areas of confusion in datacom is over the terms "transmit" and "receive" as they pertain to DTE (data terminal equipment) and DCE (data communication equipment). In synchronous communication, this confusion is particularly acute, because more signals are involved. So why is it that you sometimes send data on TD, and other times you send data on RD? Is this just a cruel form of mental torture? Not really. The secret lies in adopting the proper perspective. In data-com, the proper perspective is always from the point of view of the DTE. When you sit at a PC, terminal or workstation (DTE) and transmit data to somewhere far away, you naturally do so on the TD (transmit data) line. When your modem or CSU/DSU (DCE) receives this incoming data, it receives the data on the TD line as well. Why? Because the only perspective that counts in data-com is the perspective of the DTE. It does not matter that the DCE thinks it is receiving data; the line is still called "TD". Conversely, when the modem or CSU/DSU receives data from the outside world and sends it to the DTE, it sends it on the RD line. Why? Because from the perspective of the DTE, the data is being received! So when wondering, "Is this line TD or RD? Is it TC or RC?" Ask yourself, "What would the DTE say?"

Find out by following these steps: The point of reference for all signals is the terminal (or PC).

1 ) Measure the DC voltages between (DB25) pins 2 & 7 and between pins 3 & 7. Be sure the black lead is connected to pin 7 (Signal Ground) and the red lead to whichever pin you are measuring.

2) If the voltage on pin 2 is more negative than -3 Volts, then it is a DTE, otherwise it should be near zero volts.

3) If the voltage on pin 3  is more negative than -3 Volts, then it is a DCE.

4) If both pins 2 & 3 have a voltage of at least 3 volts, then either you are measuring incorrectly, or your device is not a standard EIA-232 device. Call technical support.

5) In general, a DTE provides a voltage on TD, RTS, & DTR, whereas a DCE provides voltage on RD, CTS, DSR, & CD.



X.21 interface on a DB 15 connector




also see X.21 write up
also see end of page for more info

X.21

General


Voltages: +/- 0.3Vdc
Speeds: Max. 100Kbps (X.26)
Max. 10Mbps (X.27)



The X.21 interface was recommended by the CCITT in 1976. It is defined as a digital signaling interface between customers (DTE) equipment and carrier's equipment (DCE). And thus primarily used for telecom equipment.

All signals are balanced. Meaning there is always a pair (+/-) for each signal, like used in RS422. The X.21 signals are the same as RS422, so please refer to RS422 for the exact details.

Pinning according to ISO 4903


Sub-D15 Male Sub-D15 Female
Sub-D15 Male Sub-D15 Female



Pin Signal abbr. DTE DCE
1 Shield   - -
2 Transmit (A)   Out In
3 Control (A)   Out In
4 Receive (A)   In Out
5 Indication (A)   In Out
6 Signal Timing (A)   In Out
7 Unassigned
8 Ground   - -
9 Transmit (B)   Out In
10 Control (B)   Out In
11 Receive (B)   In Out
12 Indication (B)   In Out
13 Signal Timing (B)   In Out
14 Unassigned
15 Unassigned

Functional Description
As can be seen from the pinning specifications, the Signal Element Timing (clock) is provided by the DCE. This means that your provider (local telco office) is responsible for the correct clocking and that X.21 is a synchronous interface. Hardware handshaking is done by the Control and Indication lines. The Control is used by the DTE and the Indication is the DCE one.

Cross-cable pinning


X.21 Cross Cable
X.21 X.21
1 1
2 4
3 5
4 2
5 3
6 7
7 6
8 8
9 11
10 12
11 9
12 10
13 14
14 13
15

RS232D uses RJ45 type connectors
(similar to telephone connectors)

Pin No. Signal Description Abbr. DTE DCE
1 DCE Ready, Ring Indicator DSR/RI
2 Received Line Signal Detector DCD
3 DTE Ready DTR
4 Signal Ground SG
5 Received Data RxD
6 Transmitted Data TxD
7 Clear To Send CTS
8 Request To Send RTS


This is a standard 9 to 25 pin cable layout for async data on a PC AT serial cable


Description Signal 9-pin DTE 25-pin DCE Source DTE or DCE
Carrier Detect CD 1 8 from Modem
Receive Data RD 2 3 from Modem
Transmit Data TD 3 2 from Terminal/Computer
Data Terminal Ready DTR 4 20 from   Terminal/Computer
Signal Ground SG 5 7 from Modem
Data Set Ready DSR 6 6 from Modem
Request to Send RTS 7 4 from   Terminal/Computer
Clear to Send CTS 8 5 from Modem
Ring Indicator RI 9

22

from Modem
This a DTE port as on the back of a PC Com Port -
EIA-574 RS-232/V.24 pin out on a DB-9 pin
used for Asynchronous Data

9 pin.jpg (13906 bytes)

9 PIN PIN OUT.GIF (33246 bytes)









25 pin D-shell connector RS232
commonly used for Async. data

PIN SIGNAL  DESCRIPTION

1   PGND Protective Ground
2   TXD Transmit Data
3   RXD Receive Data
4   RTS Ready To Send
5   CTS Clear To Send
6   DSR Data Set Ready
7   SG Signal Ground
8   CD Carrier Detect
20  DTR Data Terminal Ready
22  RI Ring Indicator




             Some applications require more pins
             than a simple async. configurations.
        Pins used for Synchronous data

jump to Other Connector pages

RS-232 Specs.

SPECIFICATIONS

RS232

RS423

Mode of Operation

SINGLE
-ENDED

SINGLE
-ENDED

Total Number of Drivers and Receivers on One Line

1 DRIVER
1 RECVR

1 DRIVER
10 RECVR

Maximum Cable Length

50 FT.

4000 FT.

Maximum Data Rate

20kb/s

100kb/s

Maximum Driver Output Voltage

+/-25V

+/-6V

Driver Output Signal Level (Loaded Min.)

Loaded

+/-5V to +/-15V

+/-3.6V

Driver Output Signal Level (Unloaded Max)

Unloaded

+/-25V

+/-6V

Driver Load Impedance (Ohms)

3k to 7k

>=450

Max. Driver Current in High Z State

Power On

N/A

N/A

Max. Driver Current in High Z State

Power Off

+/-6mA @ +/-2v

+/-100uA

Slew Rate (Max.)

30V/uS

Adjustable

Receiver Input Voltage Range

+/-15V

+/-12V

Receiver Input Sensitivity

+/-3V

+/-200mV

Receiver Input Resistance (Ohms)

3k to 7k

4k min.

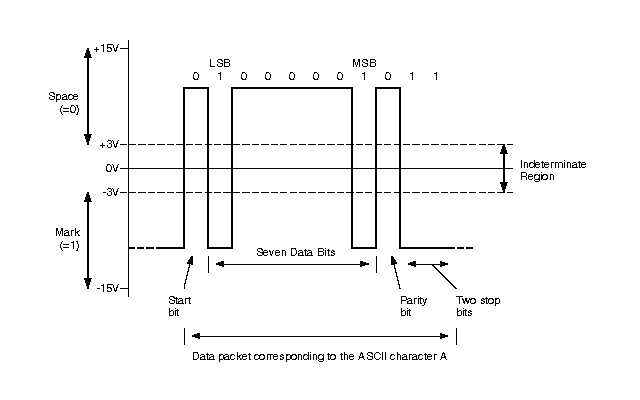

One byte of async data


Cabling considerations - you should use cabling made for RS-232 data but I have seen low speed data go over 250' on 2 pair phone cable. Level 5 cable can also be used but for best distance use a low capacitance data grade cable.

The standard maxim length is 50' but if data is async you can increase that distance to as much as 500' with a good grade of cable.

The RS-232 signal on a single cable is impossible to screen effectively for noise. By screening the entire cable we can reduce the influence of outside noise, but internally generated noise remains a problem. As the baud rate and line length increase, the effect of capacitance between the different lines introduces serious crosstalk (this especially true on synchronous data - because of the clock lines) until a point is reached where the data itself is unreadable. Signal Crosstalk can be reduced by using low capacitance cable and shielding each pair

Using a high grade cable (individually shield low capacitance pairs) the distance can be extended to 4000'

At higher frequencies a new problem comes to light. The high frequency component of the data signal is lost as the cable gets longer resulting in a   rounded, rather than square wave signal.

The maxim distance will depend on the speed and noise level around the cable run.

On longer runs a line driver is needed. This is a simple modem used to increase the maxim distance you can run RS-232 data.

Making sense of the specifications

Selecting data cable isn't difficult, but often gets lost in the shuffle of larger system issues. Care should be taken. however, because intermittent problems caused by marginal cable can be very difficult to troubleshoot.

Beyond the obvious traits such as number of conductors and wire gauge, cable specifications include a handful of less intuitive terms.


Characteristic Impedance (Ohms): A value based on the inherent conductance, resistance, capacitance and inductance of a cable that represents the impedance of an infinitely long cable. When the cable is out to any length and terminated with this Characteristic Impedance, measurements of the cable will be identical to values obtained from the infinite length cable. That is to say that the termination of the cable with this impedance gives the cable the appearance of being infinite length, allowing no reflections of the transmitted signal. If termination is required in a system, the termination impedance value should match the Characteristic Impedance of the cable.

Shunt Capacitance (pF/ft): The amount of equivalent capacitive load of the cable, typically listed in a per foot basis One of the factors limiting total cable length is the capacitive load. Systems with long lengths benefits from using low capacitance cable.

Propagation velocity (% of c): The speed at which an electrical signal travels in the cable. The value given typically must be multiplied by the speed of light (c) to obtain units of meters per second. For example, a cable that lists a propagation velocity of 78% gives a velocity of 0.78 X 300 X 106 - 234 X 106 meters per second.

Plenum cable

Plenum rated cable is fire resistant and less toxic when burning than non-plenum rated cable. Check building and fire codes for requirements. Plenum cable is generally more expensive due to the sheathing material used.

The  specification recommends 24AWG twisted pair cable with a shunt capacitance of 16 pF per foot and 100 ohm characteristic impedance.

It can be difficult to qualify whether shielding is required in a particular system or not, until problems arise. We recommend erring on the safe side and using shielded cable. Shielded cable is only slightly more expensive than unshielded.

There are many cables available meeting the recommendations of RS-422 and RS-485, made specifically for that application. Another choice is the same cable commonly used in the Twisted pair Ethernet cabling. This cable, commonly referred to as Category 5 cable, is defined by the ElA/TIA/ANSI 568 specification The extremely high volume of Category 5 cable used makes it widely available and very inexpensive, often less than half the price of specialty RS422/485 cabling. The cable has a maximum capacitance of 17 pF/ft (14.5 pF typical) and characteristic impedance of 100 ohms.

Category 5 cable is available as shielded twisted pair (STP) as well as unshielded twisted pair (UTP) and generally exceeds the recommendations  making it an excellent choice for RS232 systems.


RS232 - V.24/V.28 - IS2110 - X.20 bis (for Async) -
X.21 bis (for Sync)

General

In this document the term RS232 will be used when refered to this serial interface. The description of RS232 is an EIA/TIA norm and is identical to CCITT V.24/V.28, X.20bis/X.21bis and ISO IS2110. The only difference is that CCITT has split the interface into its electrical description (V.28) and a mechanical part (V.24) or Asynchronous (X.20 bis) and Synchronous (X.21 bis) where the EIA/TIA describes everything under RS232.

As said before RS232 is a serial interface. It can be found in many different applications where the most common ones are modems and Personal Computers. All pinning specifications are writen for the DTE side.

All DTE-DCE cables are straight through meaning the pins are connected one on one. DTE-DTE and DCE-DCE cables are cross cables. To make a destiction between all different types of cables we have to use a naming convention.
DTE - DCE: Straight Cable
DTE - DTE: Null-Modem Cable
DCE - DCE: Tail Circuit Cable

Interface Mechanical

RS232 can be found on different connectors. There are special specifications for this. The CCITT only defines a Sub-D 25 pins version where the EIA/TIA has two versions RS232C and RS232D which are resp. on a Sub-D25 and a RJ45. Next to this IBM has added a Sub-D 9 version which is found an almost all Personal Computers and is described in TIA 457.

Sub-D25M Sub-D25F
Sub-D9M Sub-D9F
RJ45M RJ45F
Male Female

Pinnings



RS232-C Description Circuit
EIA
Circuit
CCITT
RJ45 TIA 457
1 Shield Ground AA
7 Signal Ground AB 102 4 5
2 Transmitted Data BA 103 6 3
3 Received Data BB 104 5 2
4 Request To Send CA 105 8 7
5 Clear To Send CB 106 7 8
6 DCE Ready CC 107 1 6
20 DTE Ready CD 108.2 3 4
22 Ring Indicator CE 125 1 9
8 Received Line Signal Detector CF 109 2 1
23 Data Signal Rate Select
(DTE/DCE Source>
CH/CI 111/112
24 Transmit Signal Element Timing
(DTE Source)
DA 113
15 Transmitter Signal Element Timing
(DCE Source)
DB 114
17 Receiver Signal Element Timing
(DCE Source)
DD 115
18 Local Loopback / Quality Detector LL 141
21 Remote Loopback RL/CG 140/110
14 Secondary Transmitted Data SBA 118
16 Secondary Received Data SBB 119
19 Secondary Request To Send SCA 120
13 Secondary Clear To Send SCB 121
12 Secondary Received Line Signal Detector/
Data signal Rate Select (DCE Source)
SCF/CI 122/112
25 Test Mode TM 142
9 Reserved for Testing
10 Reserved for Testing
11 Unassigned


Interface Electrical

All signals are measured in reference to a common ground, which is called the signal ground (AB). A positive voltage between 3 and 15 Vdc represents a logical 0 and a negative voltage between 3 and 15 Vdc represents a logical 1.
This switching between positive and negative is called bipolar. The zero state is not defined in RS232 and is considered a fault condition (this happens when a device is turned off).
According to the above a maximum distance of 50 ft or 15 m. can be reached at a maximum speed of 20k bps. This is according to the official specifications, the distance can be exceeded with the use of Line Drivers.

Functional description

Description Circuit Function
Shield Ground AA Also known as protective ground. This is the chassis ground connection between DTE and DCE.
Signal Ground AB The reference ground between a DTE and a DCE. Has the value 0 Vdc.
Transmitted Data BA Data send by the DTE.
Received Data BB Data received by the DTE.
Request To Send CA Originated by the DTE to initiate transmission by the DCE.
Clear To Send CB Send by the DCE as a reply on the RTS after a delay in ms, which gives the DCEs enough time to energize their circuits and synchronize on basic modulation patterns.
DCE Ready CC Known as DSR. Originated by the DCE indicating that it is basically operating (power on, and in functional mode).
DTE Ready CD Known as DTR. Originated by the DTE to instruct the DCE to setup a connection. Actually it means that the DTE is up and running and ready to communicate.
Ring Indicator CE A signal from the DCE to the DTE that there is an incomming call (telephone is ringing). Only used on switched circuit connections.
Received Line Signal Detector CF Known as DCD. A signal send from DCE to its DTE to indicate that it has received a basic carrier signal from a (remote) DCE.
Data Signal Rate Select
(DTE/DCE Source>
CH/CI A control signal that can be used to change the transmission speed.
Transmit Signal Element Timing
(DTE Source)
DA Timing signals used by the DTE for transmission, where the clock is originated by the DTE and the DCE is the slave.
Transmitter Signal Element Timing
(DCE Source)
DB Timing signals used by the DTE for transmission.
Receiver Signal Element Timing
(DCE Source)
DD Timing signals used by the DTE when receiving data.
Local Loopback / Quality Detector LL
Remote Loopback RL/CG Originated by the DCE that changes state when the analog signal received from the (remote) DCE becomes marginal.
Test Mode TM
Reserved for Testing

The secondary signals are used on some DCE's. Those units have the possibility to transmit and/or receive on a secondary channel. Those secondary channels are mostly of a lower speed than the normal ones and are mainly used for administrative functions.


Cable pinning
Here are some cable pinning that might be useful. Not all applications are covered, it is just a help:

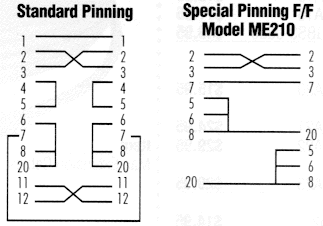

Straight DB25 Cable DB25 Null- modem
or cross over cable (Async)
DB25 Tail- circuit
or cross over cable cable (Sync)
DB25 to DB9 DTE - DCE cable
Pin Pin
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
9 9
10 10
11 11
12 12
13 13
14 14
15 15
16 16
17 17
18 18
19 19
20 20
21 21
22 22
23 23
24 24
25 25

Pin

Pin

1

1

2

3

3

2

4

5

5

4

6, 8

20

7

7

20

6, 8

DB9 Null- modem or
cross over cable
</

1,6

4

2

3

3

2

4

1,6

5

5

7

8

8

7

Pin

Pin

1

1

2

3

3

2

4

8

6

20

7

7

8

4

17

24

20

6

24

17



Pin

Pin



1

3

2

2

3

7

4

8

5

6

6

5

7

1

8

4

20

9

22





This cable should be used for DTE to DCE (for instance computer to modem) connections with hardware handshaking.

9 PIN D-SUB FEMALE (To Computer).
25 PIN D-SUB MALE (To Modem).

9 PIN D-SUB FEMALE to the Computer
25 PIN D-SUB MALE to the Modem

  Female Male Dir
Shield   1
Transmit Data 3 2 -->
Receive Data 2 3 <--
Request to Send 7 4 -->
Clear to Send 8 5 <--
Data Set Ready 6 6 -->
System Ground 5 7
Carrier Detect 1 8 -->
Data Terminal Ready 4 20 -->
Ring Indicator 9 22 <--

Nullmodem (25-25) Cable

Use this cable between two DTE devices (for instance two computers).

(To Computer 1).
(To Computer 2).

25 PIN D-SUB FEMALE to Computer 1.
25 PIN D-SUB FEMALE to Computer 2.

  D-Sub 1 D-Sub 2
Recieve Data 3 2 Transmit Data
Transmit Data 2 3 Receive Data
Data Terminal Ready 20 6+8 Data Set Ready + Carrier Detect
System Ground 7 7 System Ground
Data Set Ready + Carrier Detect 6+8 20 Data Terminal Ready
Request to Send 4 5 Clear to Send
Clear to Send 5 4 Request to Send
Note: DSR & CD are jumpered to fool the programs to think that their online.
RS232 (25 pin) Tail Circuit Cable
tail-circuit cable.gif (30371 bytes)
Cross Pinned cables for Async data.
cross pinned cables.GIF (25294 bytes)



Pin out for local Async Data transfer

null modem cable.GIF (15831 bytes)




(in-depth  write ups)


|Home|About Us|Services|Search|
|Software|Products|Support|Links|Latest|
W3C validatedW3C validated CSSCompatible with all browsers
